This 9 foot pool table combines aesthetics with outstanding playability through its elegant briar wood finishing with precise construction.
The large playing field allows the balls to run perfectly thanks to the use of a first quality slate, covered with cloth from the best tradition, resulting in this table to be particularly suitable for the keenest players.
The ball track mechanism, with no blind spots, releases all balls at once. The universal selector is able to recognize both the 60,3mm and the 54mm cue ball.
The anti-theft system retains the cue ball after the last numbered ball has been potted, preventing to obtain more balls, while the cash-box has an extra protection and a separate access door with its own key.
King is operator-friendly: after opening the two service locks, the playing field can be lifted - to inspect and clean the cabinet inside or to replace the cloth - by one person only, thanks to a special mechanism enabling to lift the slate (on request).
Coming with a mechanical coin mechanism with coin counter, King can also be equipped with more advanced systems as the mechanical coin mechanism with tamper-proof coin counter or the one with rejector, or the electromechanical and the electronic system GARL 2001.
Model | KING |
---|---|
Playfield | cm. 254 x 127 |
Weight | Kg. 520 |
Wooden crate (table) | cm. 295 x 168 x 52 |
Carton box (legs) | cm. 85 x 61 x 34 |
External size | cm. 288 x 161 |
Click on the individual icons to view the information

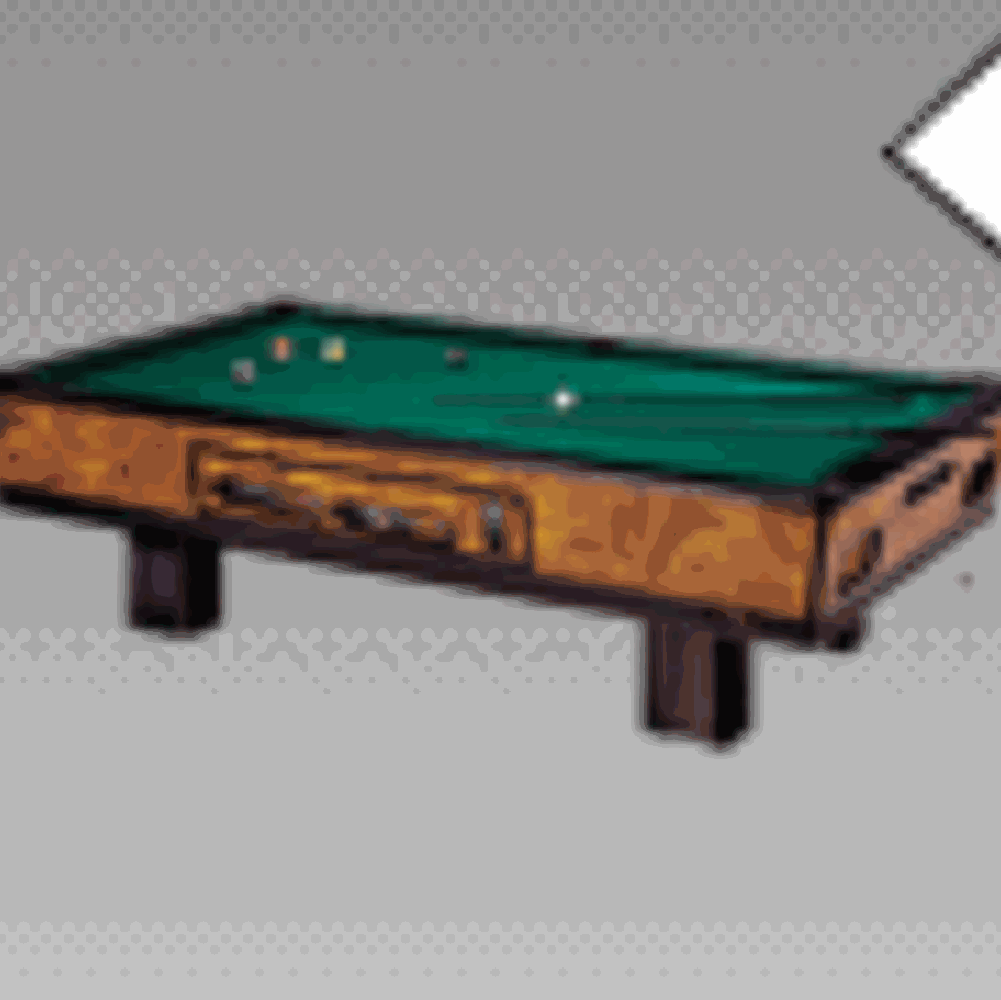

Size: 9 foot.
Heavy duty cabinet in multi-layer plywood (2,5cm = 1in thick) for the strongest structure to stand up to the toughest environments. Elegant coating in plastic laminate with wood grain effect and black finishings.

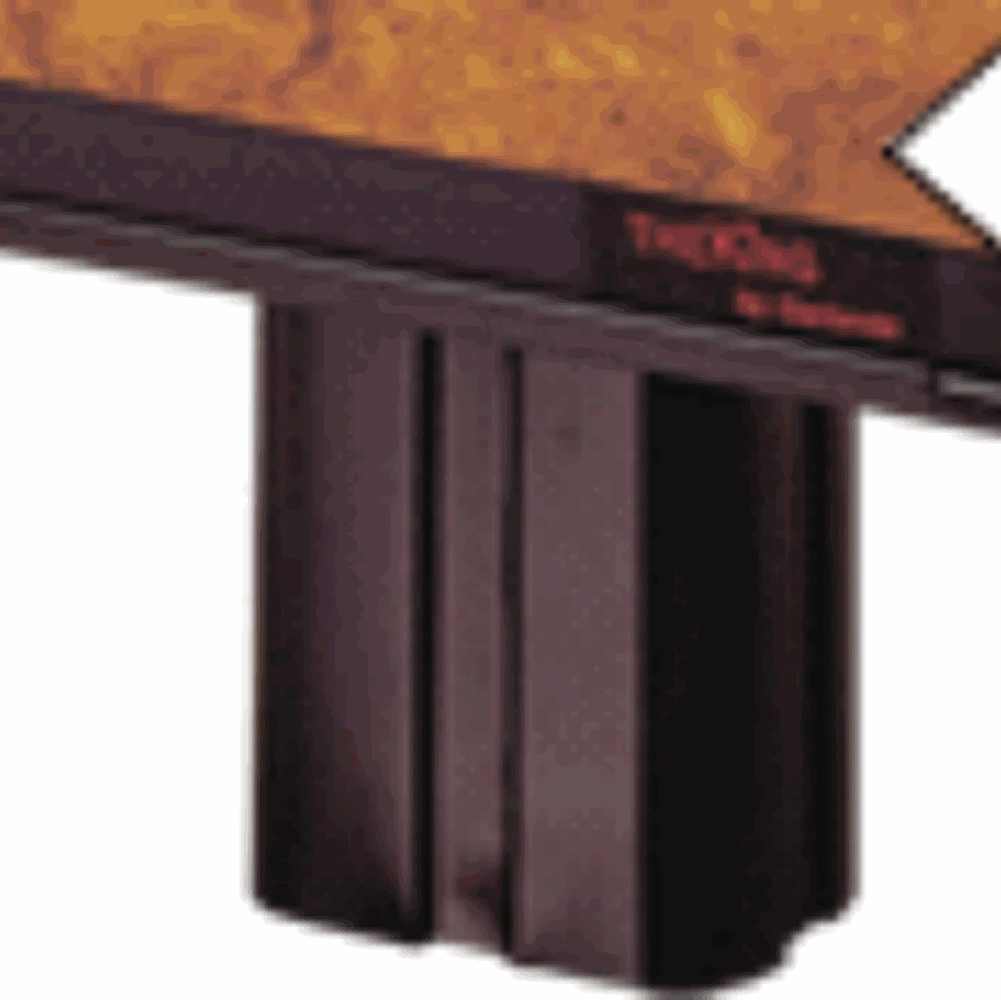

Strong, square, powder varnished metal legs for perfect stability, equipped with levellers: they allow one person to level a table in minutes without having to lift the table.

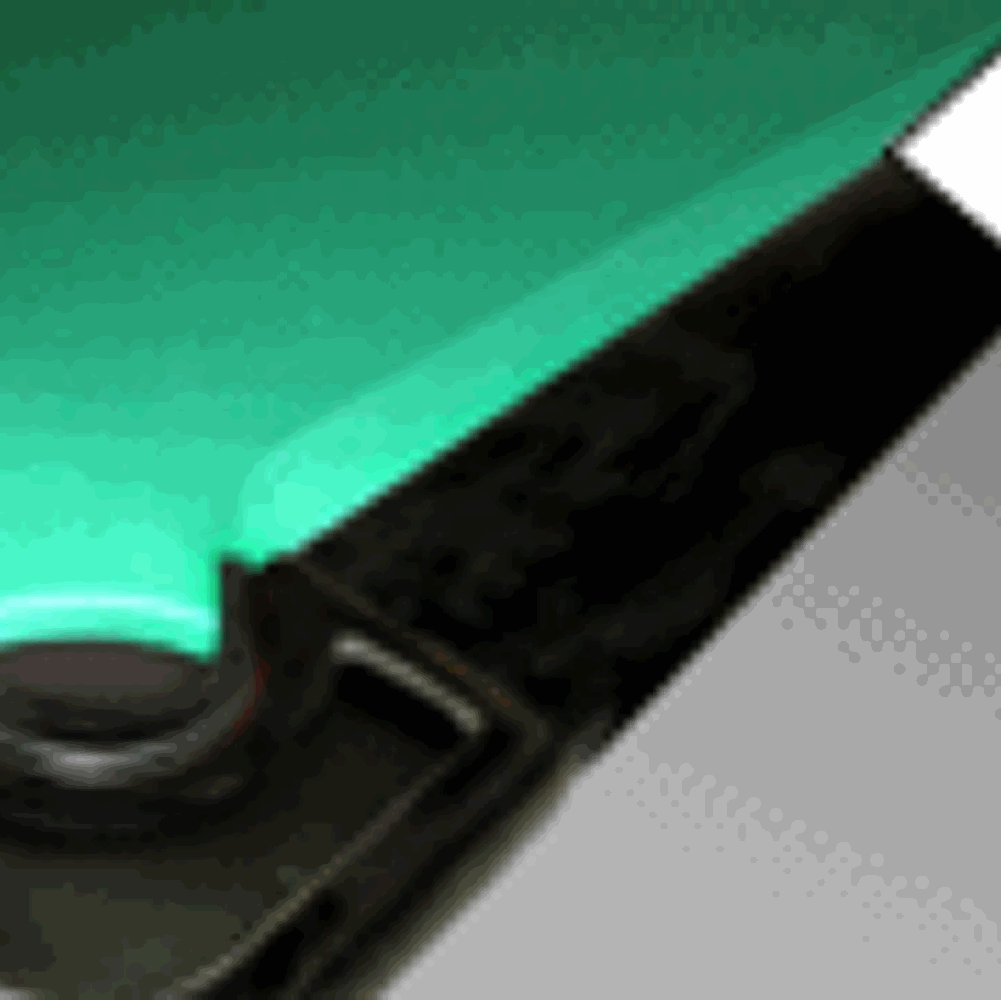

Wooden handrails coated with post-formed plastic laminate with increased scratch- and fire-resistance. Colour: black.

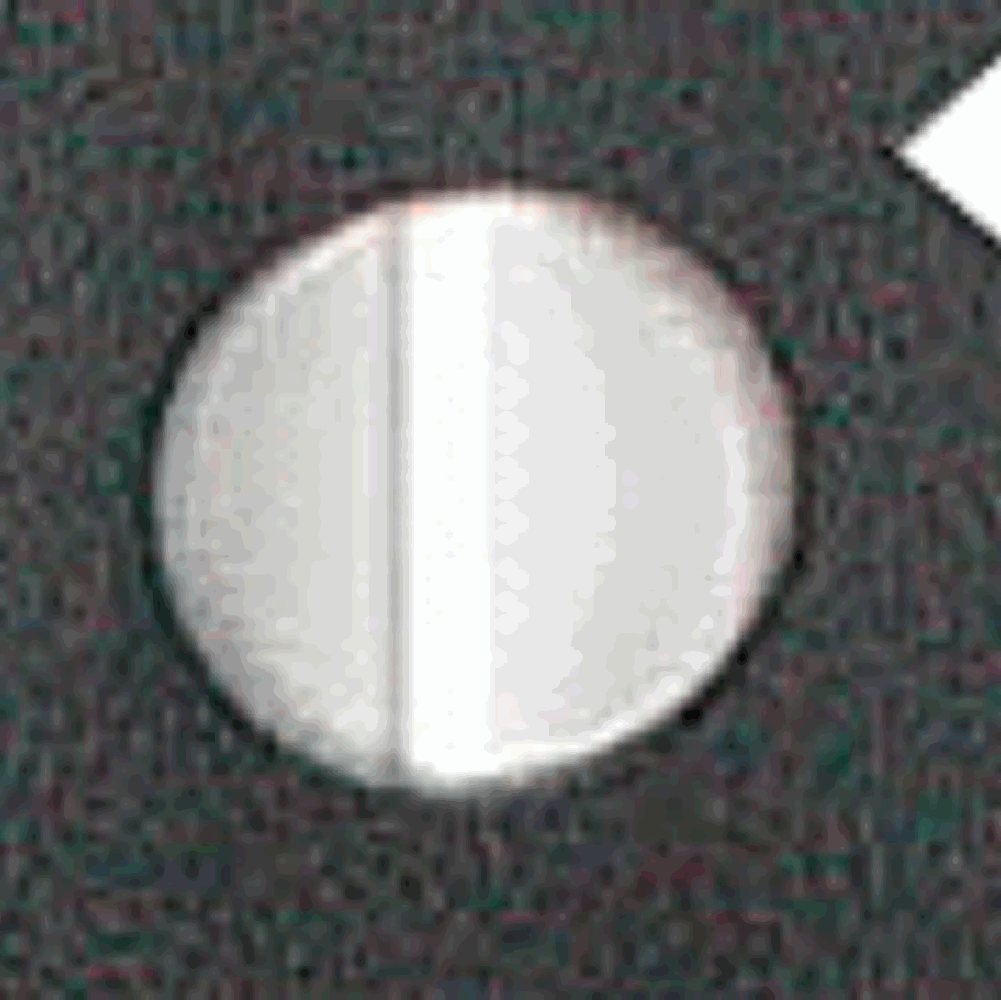

Inlaid diamond markers for permanent durability.

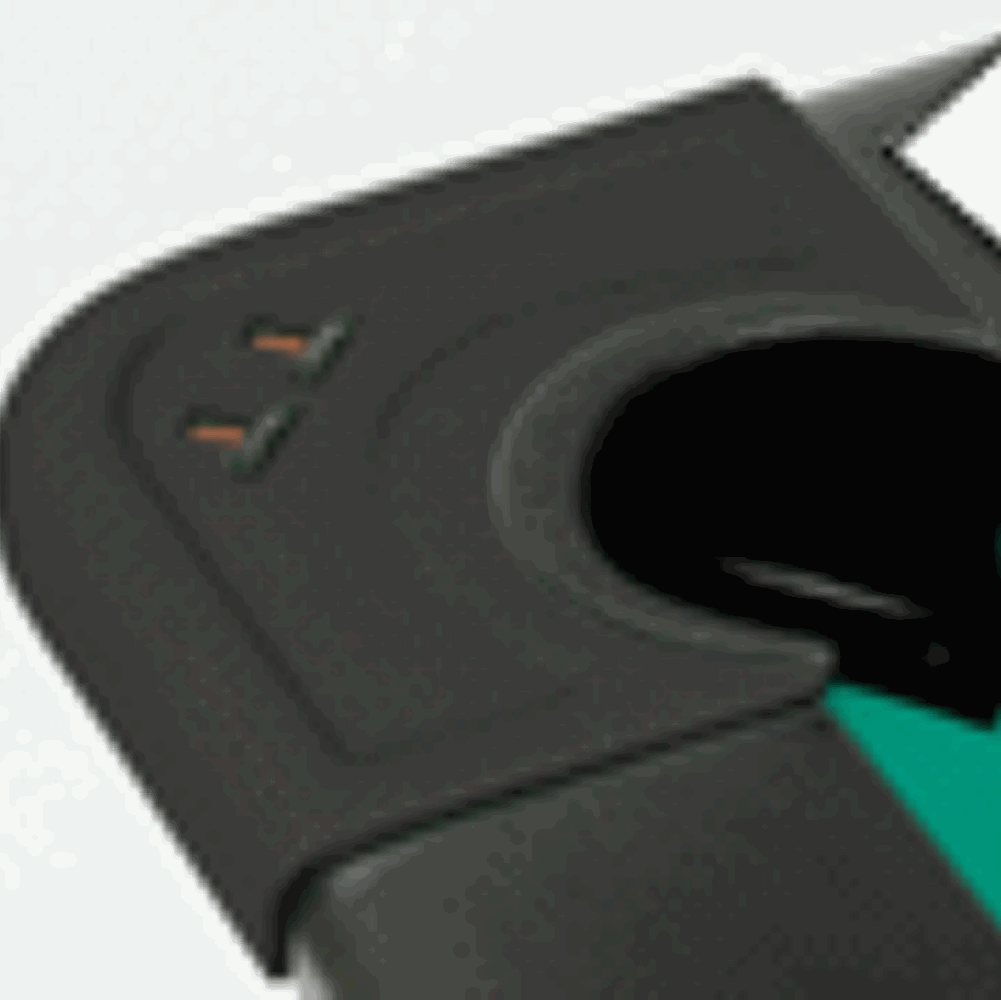

Heavy duty black metal corners with scorers.

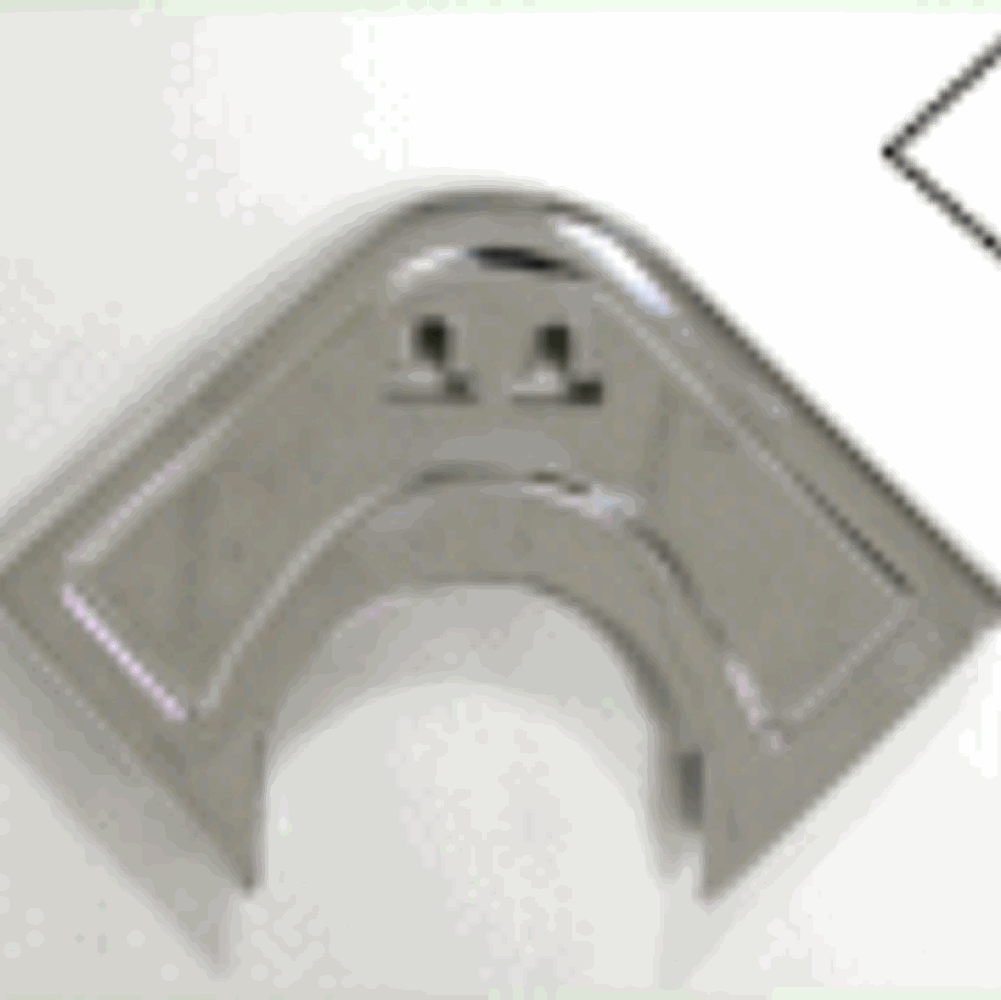

On request chrome-plated corners for a luxury effect.
One-piece 22mm (1 in) thick slate. Only first quality slates - all surfaces are precision measured and flat-ground - are used to assure the greatest shot perfection. Ensures true ball roll.

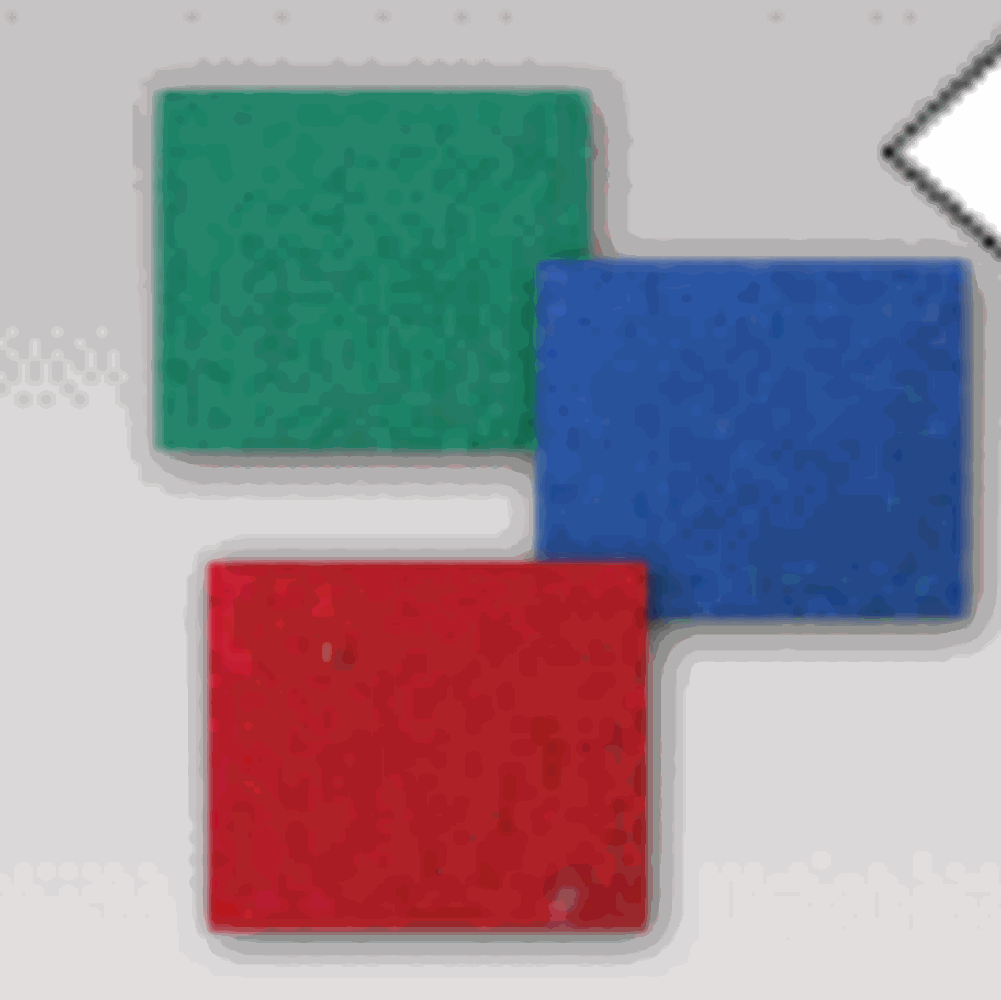

Slate is covered with high quality worsted wool cloth (80 % wool, 20 % nylon) supplied by well-known companies, for long wear and tear and smoothest ball running. Choice of colour among green, blue, red or salmon.

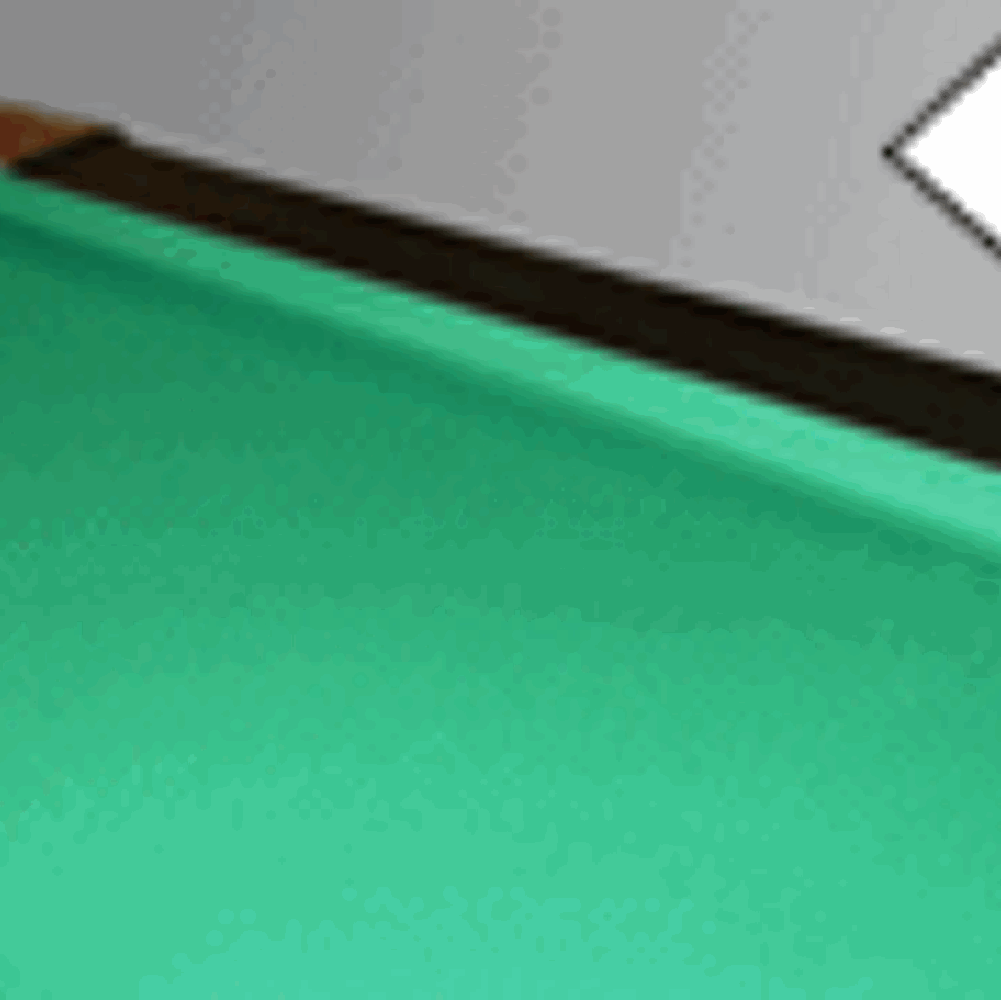

Hardwood cushion rails screwed to the cabinet for easier replacement. K-66 profile non deformable rubber to provide accurate ball rebound.

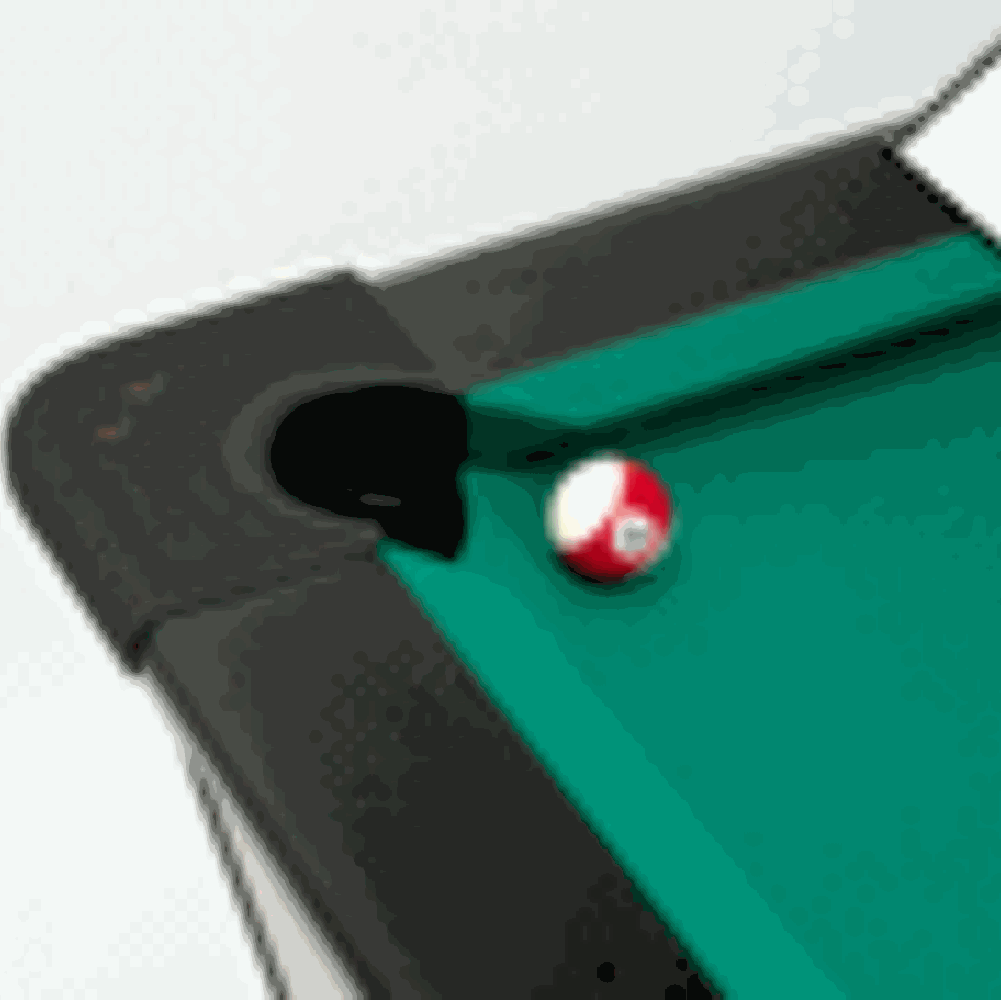

Holes complying with the competition standard (external diameter approx. 12 cm). On request it is possible to provide the table of smaller holes (Italian standard).

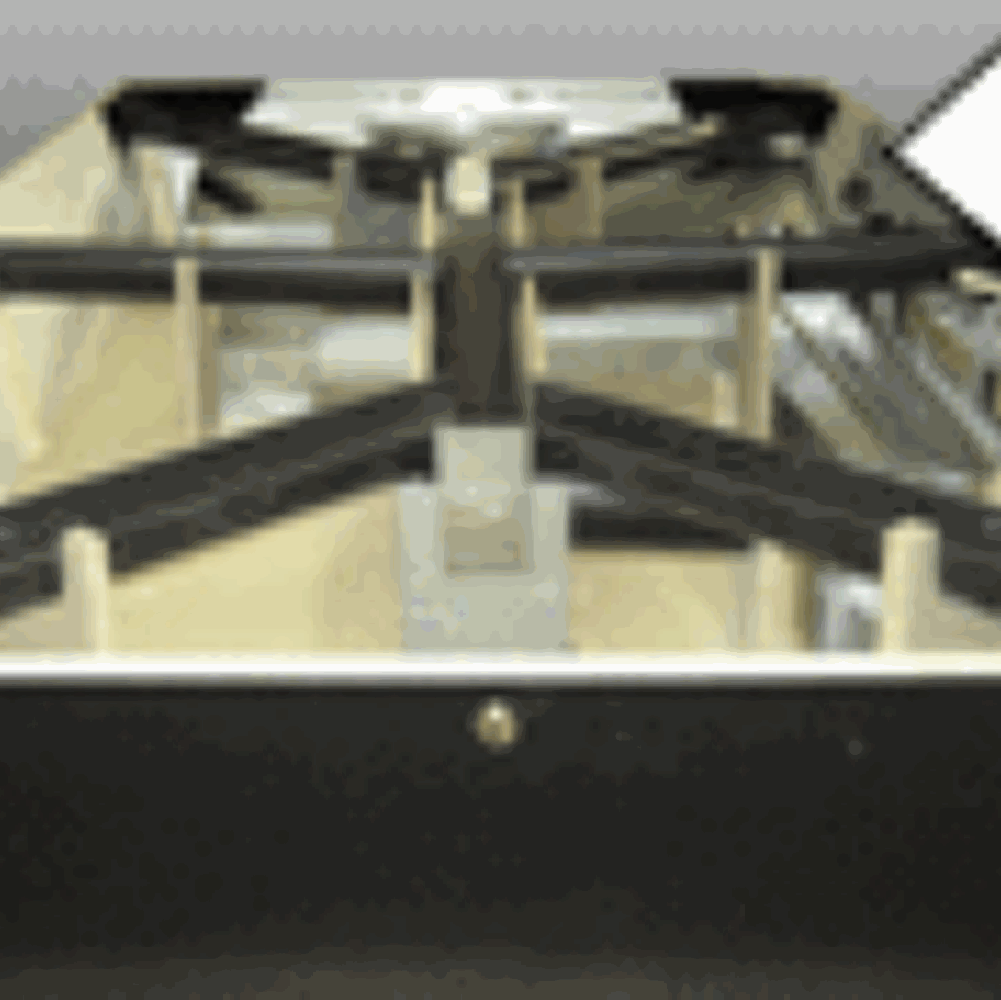

Ball track system comprised by individually replaceable parts and with no blind spots.

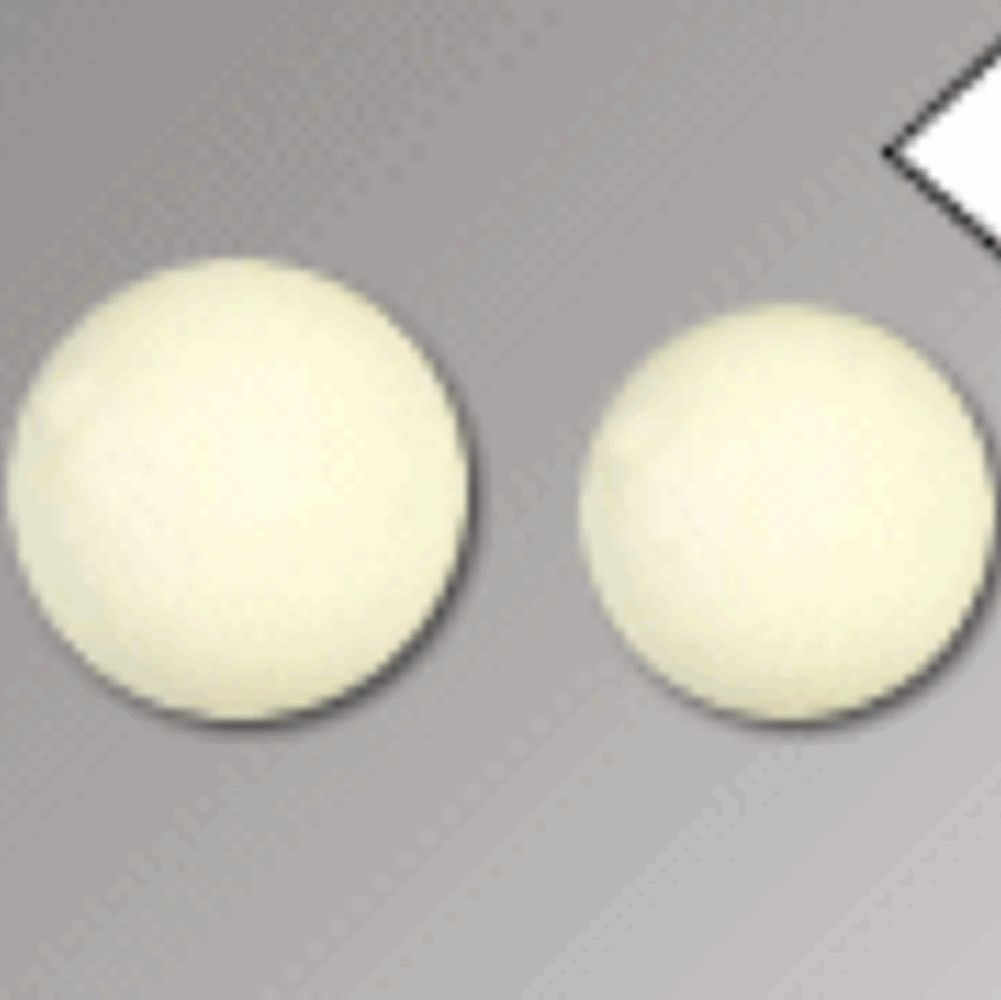

Universal ball selector works with 60,3mm cue ball (or 54mm).

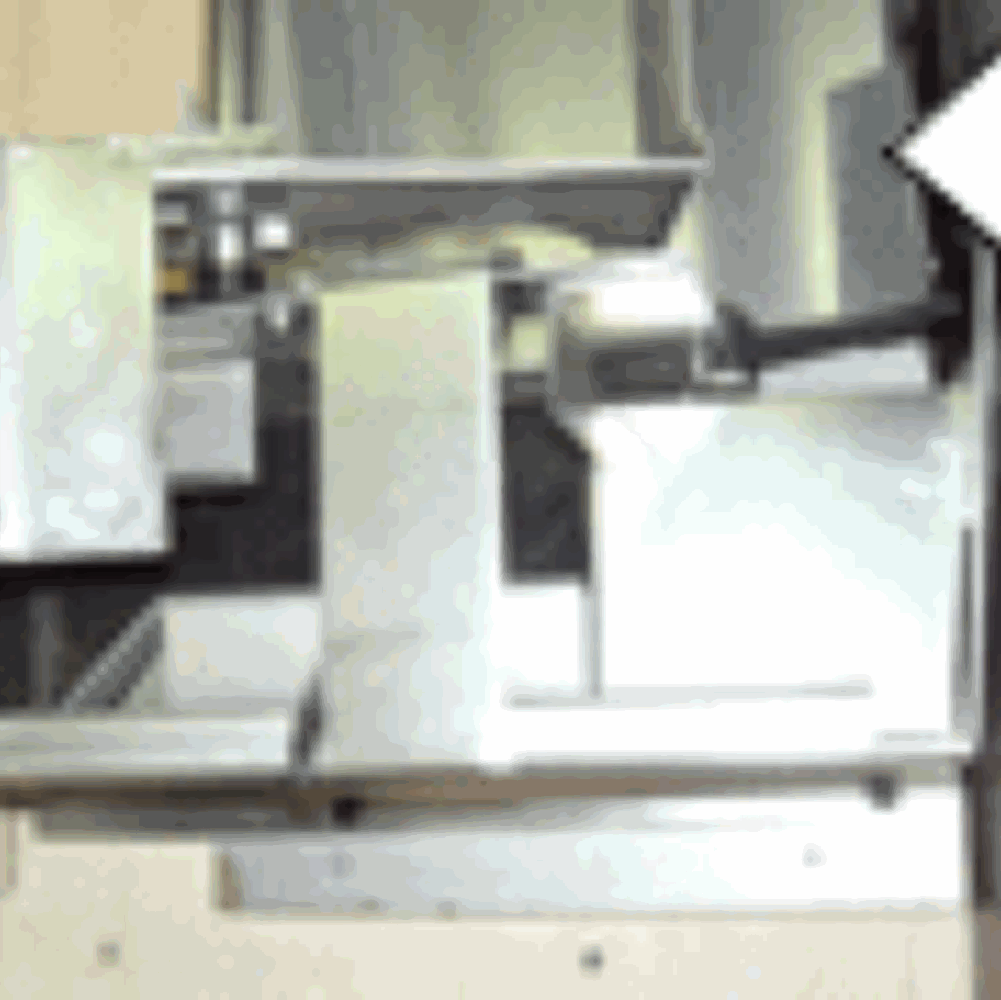

Anti-theft ball system retains the cue ball after the last numbered ball has been potted.

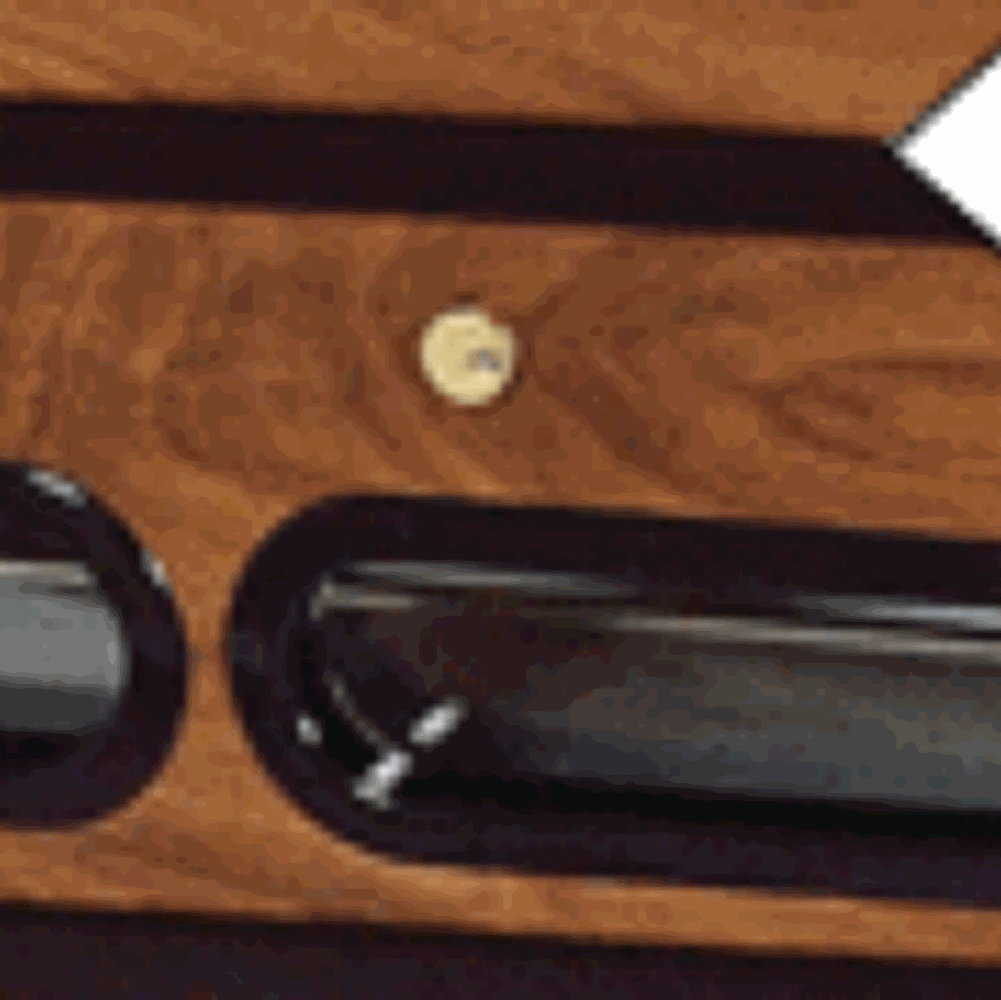

Inside table accessed by opening two service locks, for easy inspecting, maintenance and parts replacing.

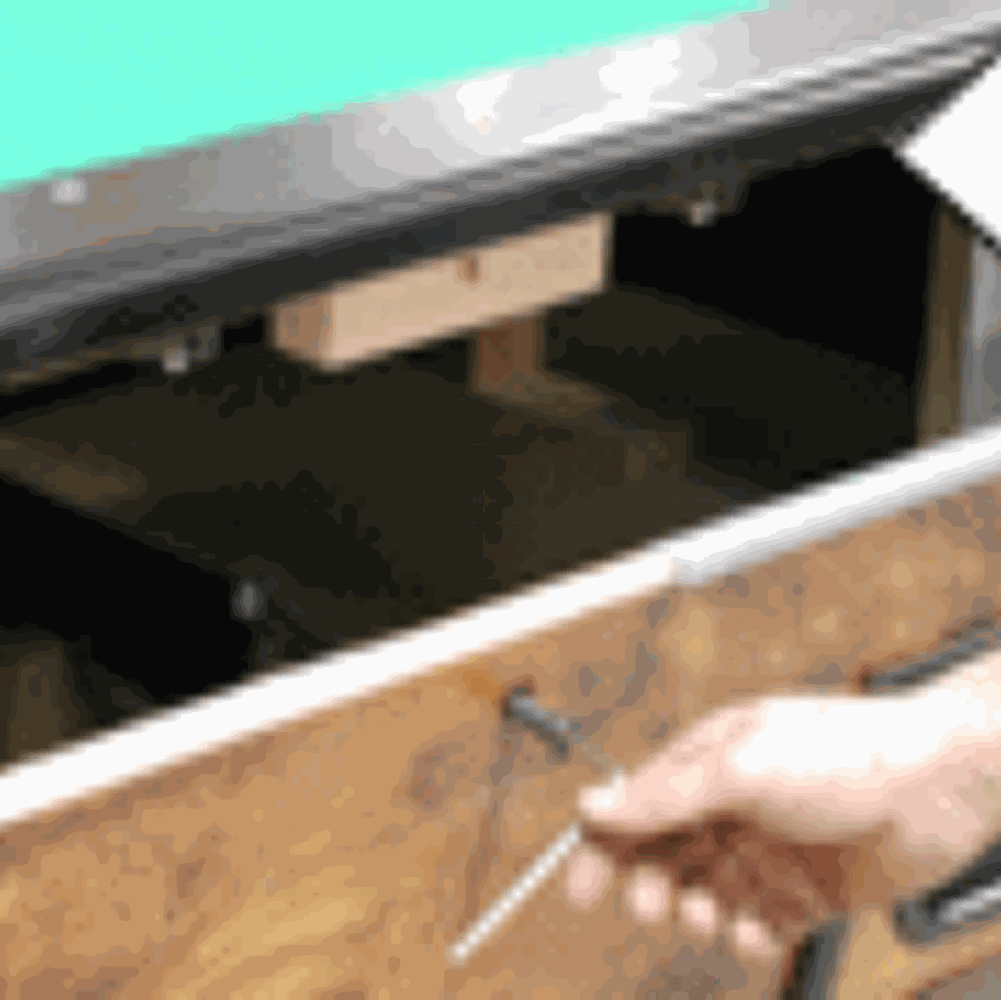

Hydraulic lifting system - on request - enables one person to lift the slate whenever it is necessary to check the table inside ot change of cloth with no need for slate removal.

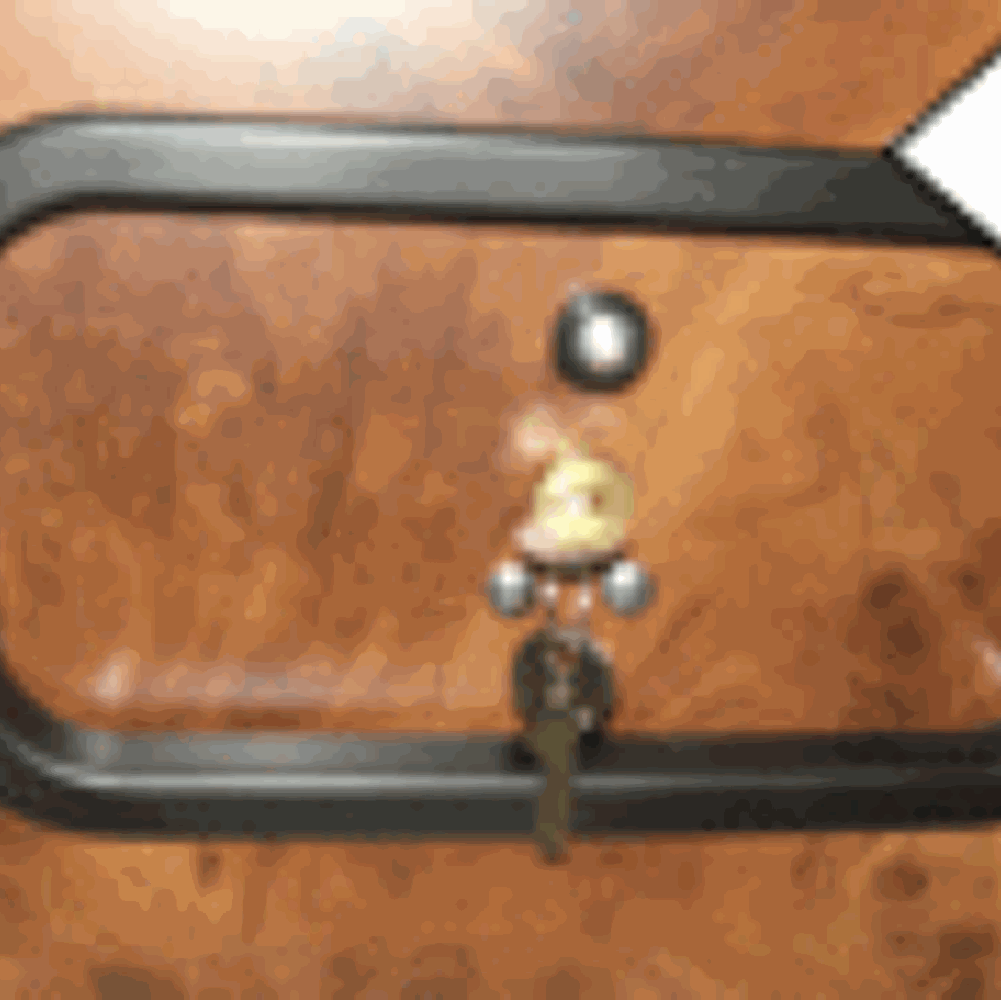

Safe access to the cash-box through a separate door with its own key.

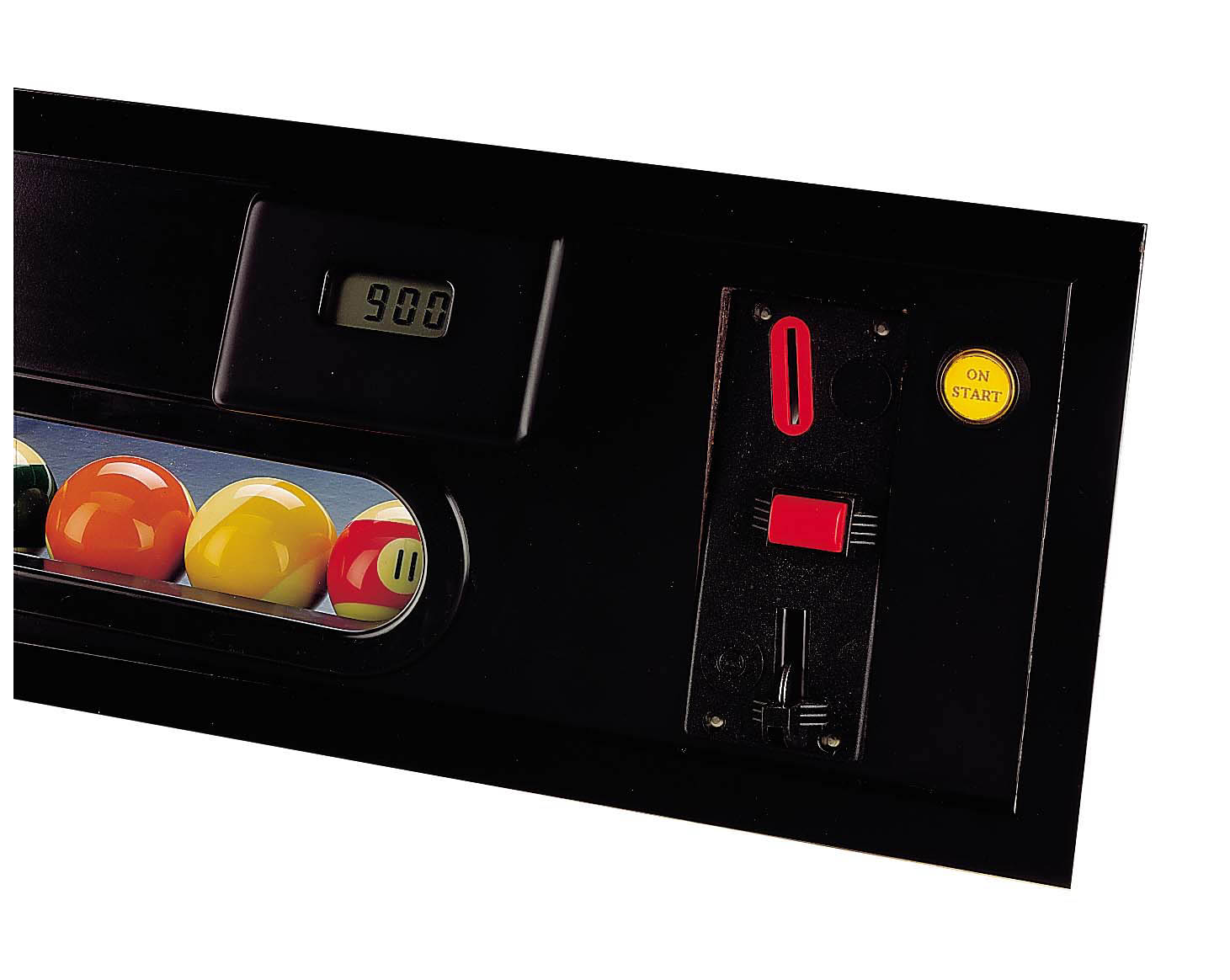

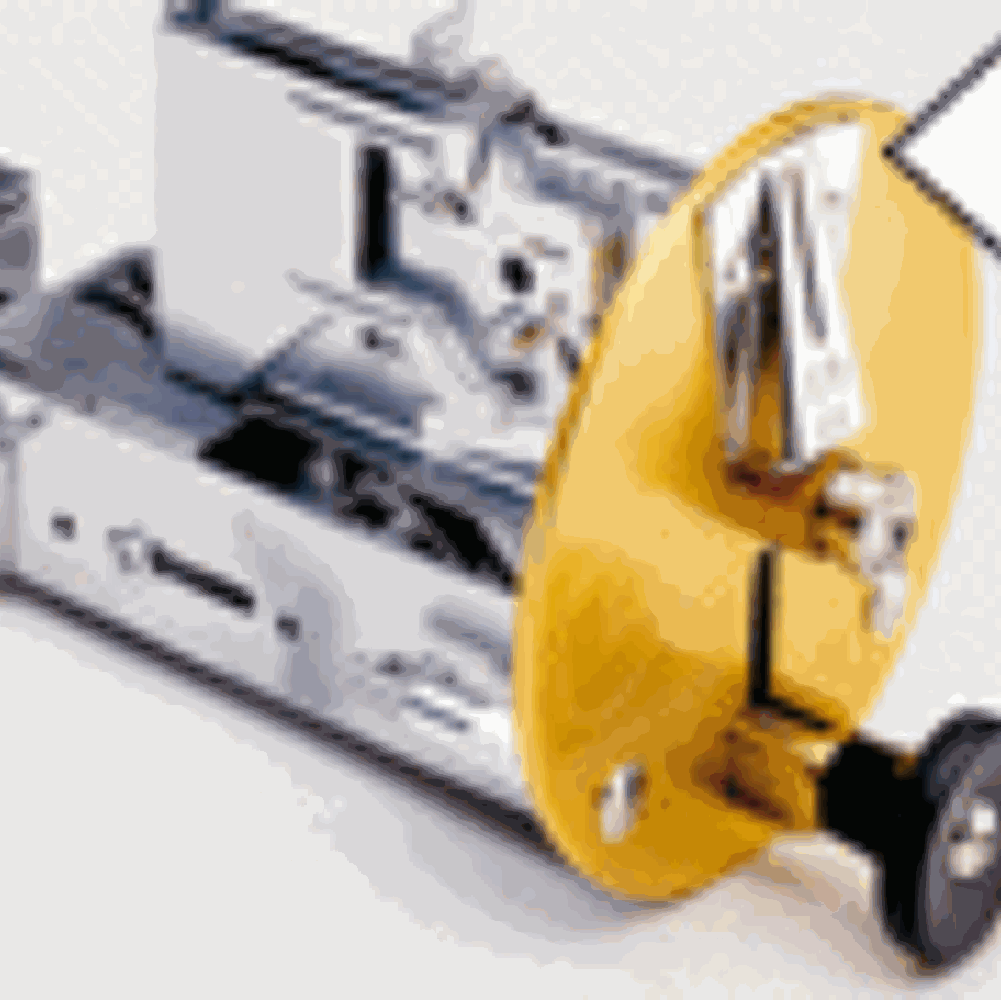

Standard mechanical pull-lever coin mechanism with coin counter, can be set for any coin or token. The system releases all balls at once.

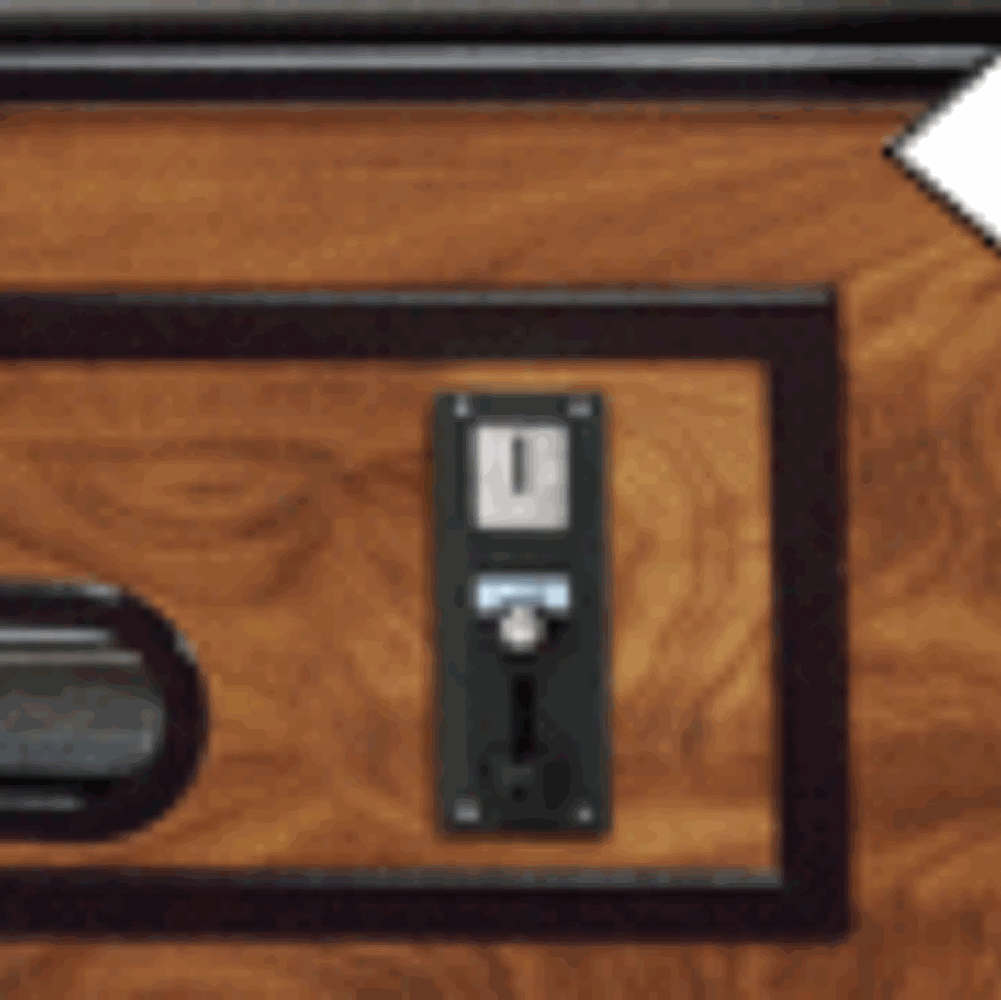

KING can also be equipped with an electromechanical system, for greater setting possibilities.

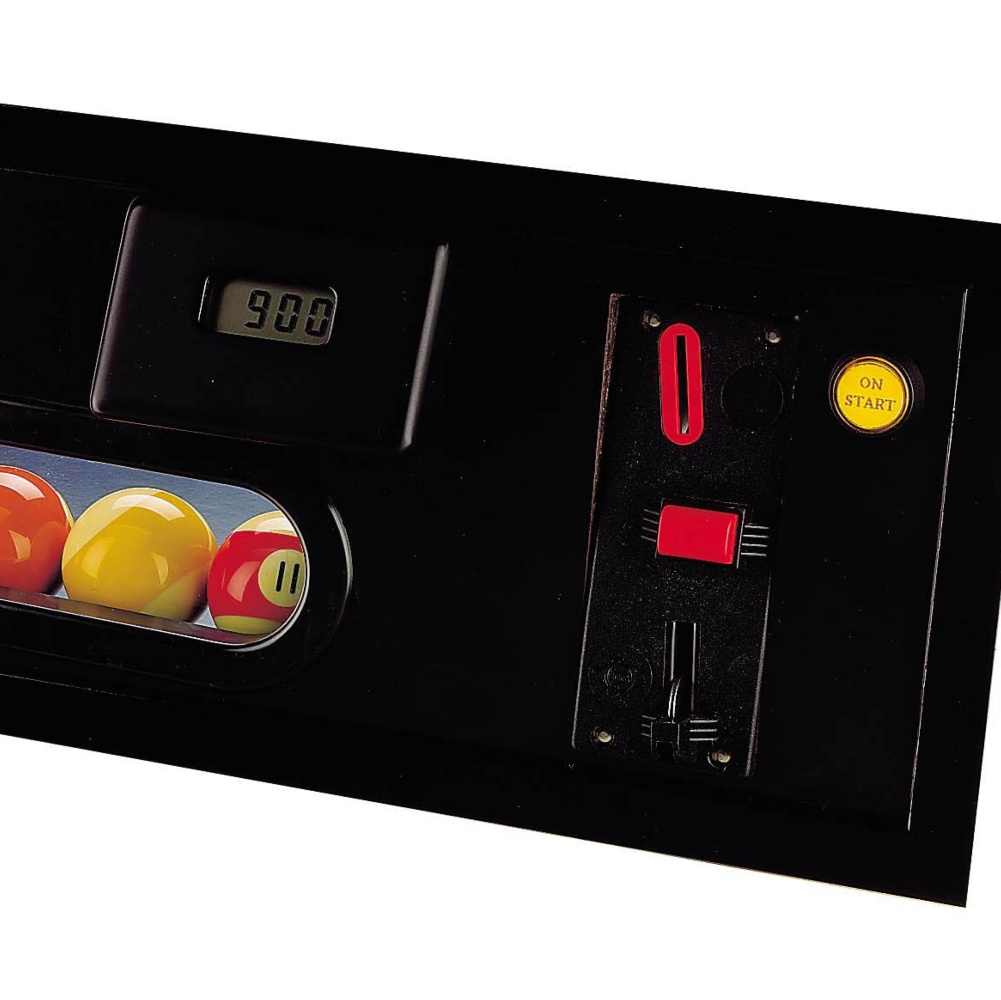

The electronic system GARL 2001 will allow the maximum versatility, accepting coins of different sizes, setting credits and offering bonuses. For full details on coin mechanisms and options please see the Coin Mechanism section.

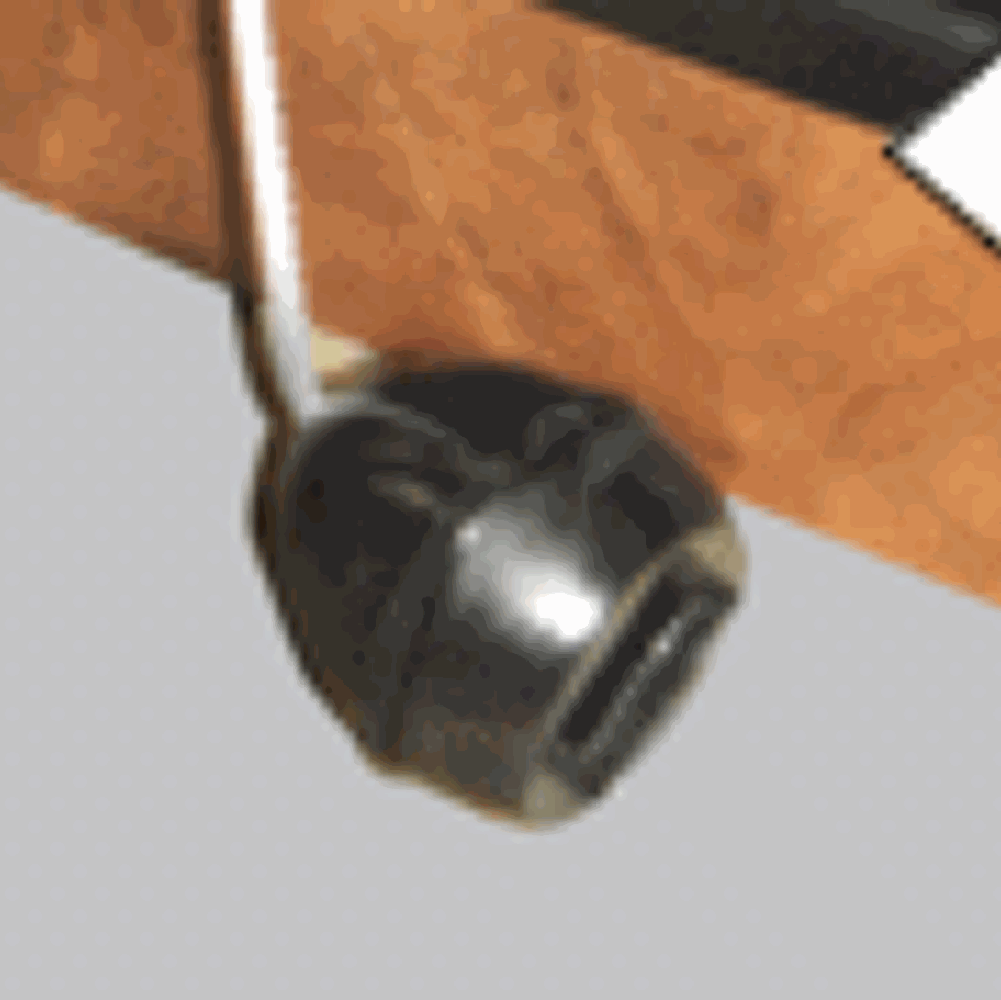

Chalk-holder incorporated to the cabinet.

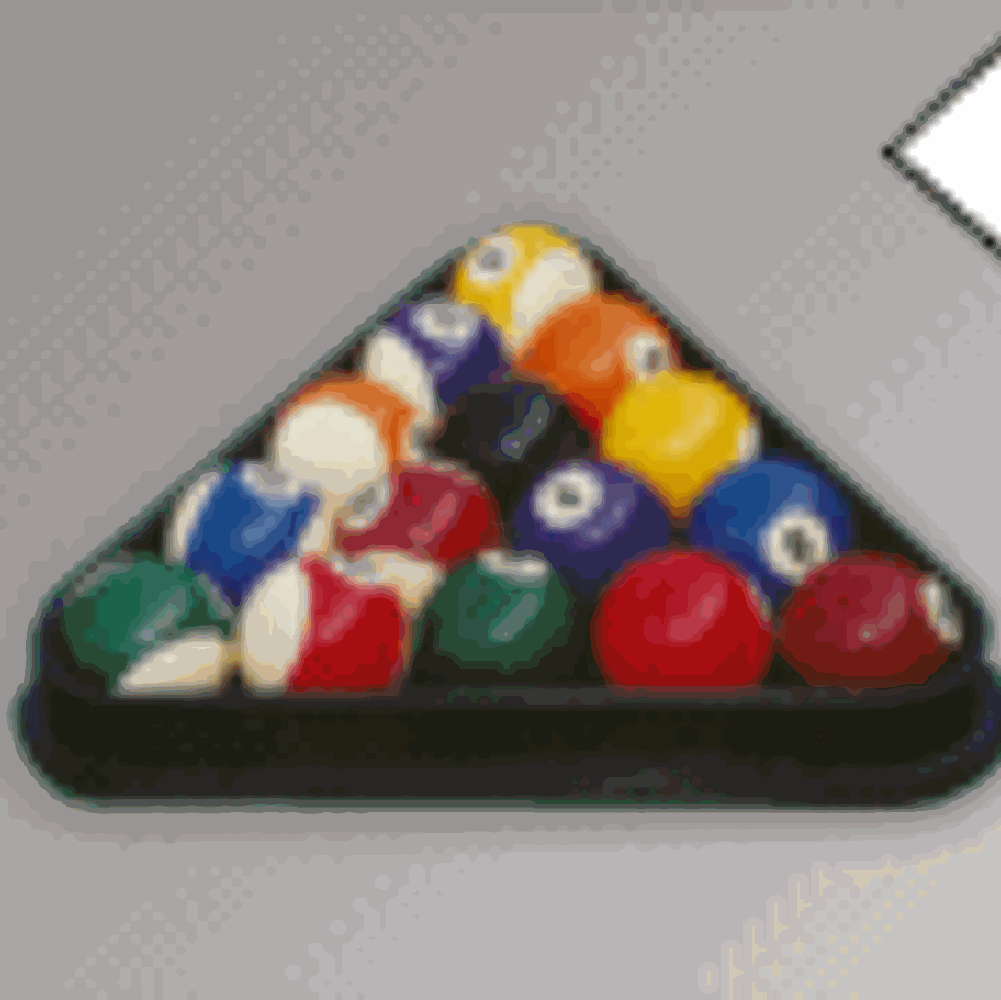

Accessories include: 4 fibreglass cues (145cm long, 122cm long cues available on request) a set of numbered pool balls diameter 57mm including cue ball diameter 54mm or 60,3mm on choice (the cue ball is 57mm diameter on versions with basket pockets or carambole). A triangle a box of 12 chalks, a brush, a water-proof protection cover
The simplest Garlando mechanical coin mechanism shares with the other versions the basic structure with all its best features of sturdiness and reliability.
The next step after the basic model, this coin mechanism is equipped with a coin counter clicking each time a coin is inserted. It allows to check how many games are played on a table to verify the correspondence of revenues.
A technically advanced model, this coin mechanism is particularly convenient wherever it is necessary to take some measures to protect incomes.
This high performance mechanical coin mechanism effects an extremely accurate coin selection, by evaluating the weight and the magnetism, besides checking diameter and thickness.
This a mechanical system enabling one man only to lift the slate, anytime it is necessary to change the cloth or access to the table inside for maintenance.
Easy functioning: two jacks with gas struts inside the cabinet raise and lift the slate.
Zero consume: the system has neither battery nor it requires voltage connection. No maintenance is required.
Useful on tables of any size, it is particularly recommended on 8 and 9 foot tables, which have the heaviest slates.
Each pool table is packed in a strong wooden crate, suitable for direct shipments, with no transloadings of goods between our warehouse and the final destination.
Legs and accessories are packed in two double-wall cartons.
Extra packings are available for more complex shipments involving goods unloading, handling, storing and re-loading.
Assembling a pool table is not a difficult operation (the table is delivered pre-assembled: only the legs are to be attached), but it requires a serious approach, owing to its size and weight. We therefore recomment that it be effected by skilled staff.
Before removing the crate, lay your pool table on a side and screw in the legs.
Warning: these explanations are only generic. For a correct and safe assembly please follow the instructions provided with your table.
Keeping the cloth in good conditions is of the greatest importance to ensure that balls can roll properly and therefore guarantee that your table is frequently used.
When the cloth is new, during the first three months of use, it is necessary to brush it as often as possible to bring it to its best conditions. Use the brush supplied right on this purpose. Always brush the cloth in the same direction toward the end of the table. Never brush in a circular motion.
Afterwards, frequently brush the cloth to prevent dust from accumulating.
Cloth may also be vacuumed, in one direction only.
Finish the maintenance by rubbing the entire area with a damp cloth to restore the cloth elasticity and the colour brightness.
The cloth can wrinkle and become loose if subjected to very high temperatures or humidity.
Avoid these extremes.
For an increased protection against light (prolonged exposition to direct sunlight may cause the colour to fade), dust and moisture, cover your table when not in use, using the protection cover included among the standard accessories.
If a drink should be accidentally spilled on the cloth causing a stain, do one of the following:
To keep the table performances high, it is of the greatest importance to periodically replace the cloth. The frequency with which this will be required closely depends on how intensely a table is used (and on how it is used), therefore it cannot be estimated beforehand.
Clean the handrails and the other surfaces (including the metal or chrome-plated ones) using a damp cloth, to eliminate dust and dirt residuals.
For a deeper cleaning you can use any neuter detergent which does not contain alcohol, wax or abrasives, having care to completely take it off and not to leave surfaces wet.
For a better protection from dust, especially if the table is not used for a long time, use the protection cover supplied.
Dust pockets frequently. Clean with a damp cloth and mild soap when needed. Dry with a soft clean cloth.
Avoid storing balls in pockets for extended periods of time. If you do, distribute balls evenly in all pockets.
Clean balls as needed with a mild household degreaser. Dry and polish with a clean soft cloth.
Stubborn stains can be removed with a non-abrasive cleanser. Dry and polish with a clean soft cloth.
For an improved shine, after cleaning balls, apply paste wax then buff.
Always store cues in the cue-holder provided on the cabinet side. This will prevent wooden cues from warping.
Clean cues as needed with a damp rag and mild soap. Dry and polish with a clean soft cloth.
Never stand on your table, as it could throw it out of level, nor sit on it, as it could break the seal between the rails and cushions, resulting in dead cushions that produce no ball response.
