Technical Data
-
3cm (1+1/4in) thick cabinet walls made from layers of plywood and medium density fibreboard combined together to provide the sturdiest and at the same time most flexible construction possible. High quality cabinet coating made of black plastic laminate and brushed aluminium.
-
The table structrure is kept together by metal plates and brackets fastened by screws and bolts for easy replacing of all parts, even the wooden ones.
-
9 x 9cm (4x4in) metal legs coated with long-lasting silver painting. New type heavy duty leg levellers for a perfectly flat playfield on all surfaces.
-
High stress resistance machine-trued hollow steel bars - diameter 16mm - coated with a three-layer anti-rust chromium-plating. The quality of the materials used, adds to the thickness of 2,2mm to prevent the bars from bending: they maintain a perfect shape for a long time. It is possible to choose between the going-through (also called solid) bars and the telescopic type.
-
Going-through bars: the standard bars protrude from the cabinet - at the handle opposite side - to follow the international competition standard, which is also used in many countries worldwide.
-
Safety device (telescopic bars): on request each table can be equipped with telescopic safety bars, having the same technical features as the going-through type. The difference is in the functioning, to obtain the maximum level of safety.
-
In telescopic bars a smaller diameter bar glides inside the players bar, whose end does not protrude from the cabinet. This prevents dangerous strikes to the childrens' eyes and face. Its use is strongly advised if the football table is meant for children and in the event that the table must be put in a location attended by children.
-

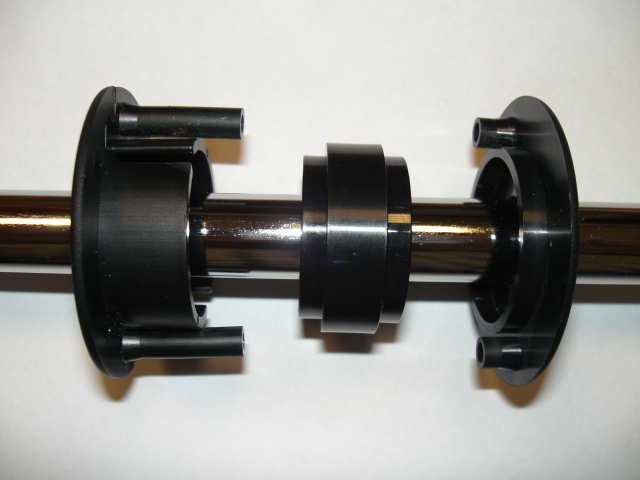

Bars are fixed to the cabinet by means of nylon ball bearings.
-
The steel roller bearings inside the bearings which fix the bars to the cabinet greatly improve the game speed, while reducing the stress for the players' wrists.
-
One-colour players in plastic material (moplen) representing a stylized human figure, directly moulded onto the bars: they do not move, cannot be displaced and maintain their positions perfectly. Non-rotating goalkeeper (180°) available only.Team colours: red and blue.
-
Handles in a new plastic material to prevent any slipping on the rods. The wood inserts reduce perspiration and improve the grip.
-
Playing field with tempered 5 mm thick glass. The silk-screen printed white lines on a green background reproduce the football ground.
-
New design playfield corners: they slope down perfectly towards the playfield without creating any step.
-
The ball release mechanism is comprised of singulary replaceable parts. The most dangerous edges have been blunted to prevent harms to the operators as well as ball chipping.
-
Goal profiles are coated with an alloy of aluminium and zinc, a very tough material preventing wear and tear: goals do not get ruined after many ball strokes.
-
The cabinet can be opened to reach the inside. When the upper cabinet is lifted, a metal support bracket automatically activates to avoid the falling of the same, during maintenance and cash-box emptying: all operations can be carried out with full safety.
-
Detachable playing field: two locks enable to detach the playing field from the cabinet upper part for easy cleaning and parts replacing.
-
Standard mechanical pull-lever coin mechanism, can be set for any coin or token and releases all balls at once.
-
On request, several options of mechanical coin mechanism are available:
coin mechanism with coin counter
coin mechanism with tamper-proof coin counter
coin mechanism with tamper-proof coin counter and rejector
-
In addition, two more complex systems, for greater programming possibilities, are available:
an electromechanical system for a improved setting.
the electronic system GARL 2001 to offer the maximum versatility in accepting different dimension coins, allowing bonuses, setting credits and still much more.
-
For full details on coin mechanisms and options please see the Coin Mechanism section.
-
Housing for American/English style square-front push lever coin mechanism supplied upon request.
-
Freeplay option: the coin mechanism can also be disconnected to enable freeplaying.
-
10 white Standard balls supplied with the table.
