Technical Data

st01.gif Heavy duty cabinet (3 centimetres thick = 1+1/4in) constructed from marine high quality multi-layer plywood coated with plastic laminate, both water-resistant and brought together using a special water-proof glue for perfect sealing. Colours: upper cabinet iridescent dark blue, lower side: iridescent light blue.
st02.gif The table structure is kept together by metal plates and brackets fastened by screws and bolts for easy replacing of all parts, even the wooden ones.

Heavy duty legs made from 9cm (4x4in) square steel coated with washable powder varnish.

st04.gif High stress resistance machine-trued hollow steel bars - diameter 16mm - coated with a three-layer anti-rust chromium-plating. The quality of the materials used, adds to the thickness of 2,2mm to prevent the bars from bending: they maintain a perfect shape for a long time. It is possible to choose between the going-through (also called solid) bars and the telescopic type.
st05.gif The special three-layer chromium-plating guarantees that both going-through and telescopic bars will not get rusted after many years of tough use.
st06.gif Going-through bars: the standard bars protrude from the cabinet - at the handle opposite side - to follow the international competition standard, which is also used in many countries worldwide.
st07.gif Safety device (telescopic bars): on request each table can be equipped with telescopic safety bars, having the same technical features as the going-through type. The difference is in the functioning, to obtain the maximum level of safety.
st08.gif In telescopic bars a smaller diameter bar glides inside the players bar, whose end does not protrude from the cabinet. This prevents dangerous strikes to the childrens' eyes and face. Its use is strongly advised if the football table is meant for children and in the event that the table must be put in a location attended by children.

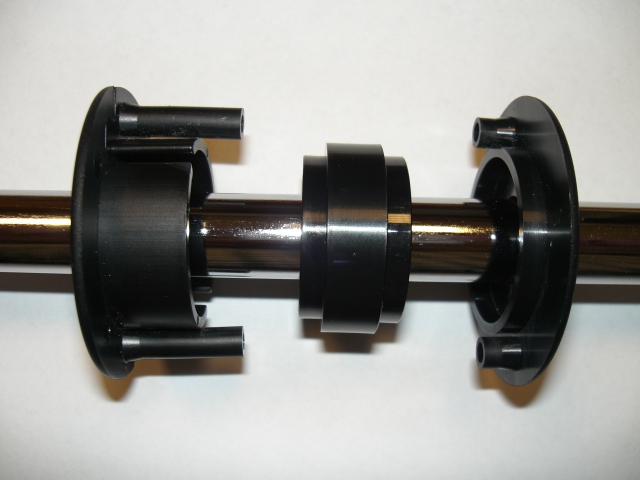

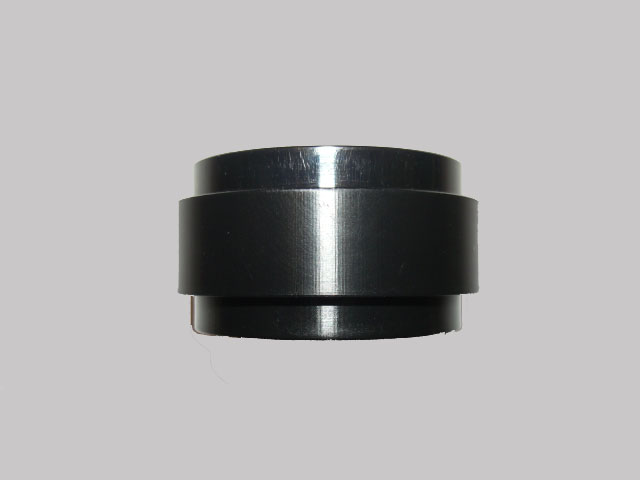

st09.gif Bars are fixed to the cabinet by means of nylon ball bearings.
st10.gif The anti-rust stainless steel roller bearings inside the bearings fixing bars to the cabinet greatly improve the game speed, while reducing the stress for the players' wrists.

One-colour players in plastic material (moplen) representing a stylized human figure, directly moulded onto the bars: they do not move, cannot be displaced and maintain their positions perfectly. Team colours: red and blue.

st12.gif Fully rotating (360 degrees) goalkeeper for easier scoring available only.
st13.gif Playing field of water-proof green formica with white lines silk-screen printed with waterproof ink: it does not fade under the sun and is not damaged by dampness.
st14.gif New design playfield corners: they slope down perfectly towards the playfield without creating any “step”.
st15.gif Balls are introduced into the playing field manually through a converyor placed on the cabinet next to the coin mechanism. The system is completely sealed, to prevent ball theft.
st16.gif Goal profiles are coated with an alloy of aluminium and zinc, a very tough material preventing wear and tear: goals do not get ruined after many ball strokes.

The cabinet is covered by a tempered glass, which reduces the noise of the game and makes any game tampering impossible. The glass coverage does not provide a watertight sealing.

st18.gif The cabinet can be opened to reach the inside. Its upper part is kept up by a wooden support bracket which prevents the falling of the same, during maintenance and cash-box emptying: all operations can be carried out with full safety.
st19.gif Detachable playing field: two locks enable to detach the playing field from the cabinet upper part for easy cleaning and parts replacing.
st20.gif The ball release mechanism is comprised of singularly replaceable parts for easy maintenance.
st21.gif Bolts, nuts and screws are subjected to a tropical anti-rust treatment.

Colour coordinated abacus scorers.

st24.gif Holders for glasses, bottles and cans complete this table accessory equipment.
st25.gif Standard mechanical pull-lever coin mechanism, can be set for any coin or token and releases all balls at once.
st26.gif On request, several options of mechanical coin mechanism are available: coin mechanism with coin counter coin mechanism with tamper-proof coin counter coin mechanism with tamper-proof coin counter and rejector
st28.gif For full details on coin mechanisms and options please see the Coin Mechanism section.

Housing for American/English style square-front push lever coin mechanism supplied upon request.


Freeplay option: the coin mechanism can also be disconnected to enable freeplaying.

st31.gif 10 orange “Standard” balls supplied with the table, for increased visibility below the glass.
